Lithium Battery Recycling Pyrolysis Furnace

Products Detail

The waste lithium battery recycling pyrolysis furnace enables high purity recycling of battery powder. Indirectly heat the battery material inside the furnace barrel through high temperature. Remove the impurities in the mixture of used lithium batteries, purify the electrolyte, binder and other substances in the battery material. This improves the recovery quality and rate of valuable metals. Completely crack PVDF, ensure the recovery efficiency of anode powder Equipped with nitrogen protection system. Ensure non-flammable and non-explosive during processing. Lithium battery recycling pyrolysis furnace can pyrolyse the plastic diaphragm and the adhesive on the positive and negative electrode materials to remove. Gasify and volatilise the electrolyte. This improves the lithium battery recovery rate. It prevents the difficult problem of black matter adhering to the positive and negative electrode materials and plastic diaphragm.

The waste lithium battery recycling system adopts the pyrolysis carbonisation process to recycle the mixture of positive and negative electrode materials. Continuous feeding and discharging is possible. It is environmentally friendly and non-polluting, with crushing and sorting system. It can separate copper, aluminium, black matter, iron and so on from the lithium battery. So as to obtain higher value.

Raw Materials

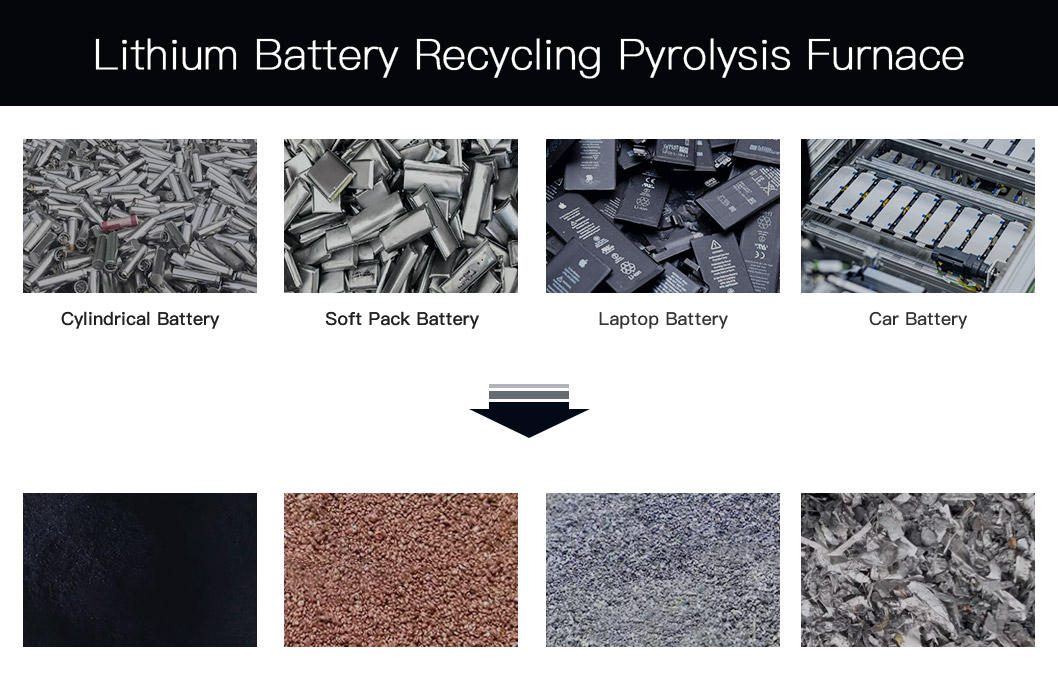

Can pyrolyse various types of lithium batteries, such as: mobile phone batteries, laptop batteries, digital batteries, car batteries and so on. Can handle battery material types: LCO\LFP\NMC etc.

Advantageous

1. the furnace body temperature control uniform, stable and reliable, environmental protection and energy saving, long service life, easy to maintain and so on.

2. natural gas, electromagnetic, liquefied gas and other heating methods can be used.

3. equipped with nitrogen protection system, the oxygen content in the furnace is less than 2%.

4. the gas quantity and power consumption of pyrolysis furnace are more than 10% lower than traditional pyrolysis furnace.

5. the equipment adopts more intelligent design concept, low failure rate, convenient maintenance, less downtime

6. Equipped with automatic PLC control system, real-time monitoring can be realised.

Technological Process

Waste lithium battery recycling disposal pyrolysis furnace This series of kiln is based on the atmosphere protection kiln. R & D and manufacture of energy-saving kiln. Furnace temperature control uniform, long-term operation, low failure rate, long life, stable and reliable. Inert gas protection. The oxygen content in the furnace is ≤20ppm, which is suitable for the pyrolysis of waste lithium battery recycling.
