VSI Sand Making Machine

Products Detail

VSI Vertical Shaft Impact Sand Making Machine, adopts advanced design concept and research and development experience. Adopt new four-port impeller design and special sealing structure. The oil seepage from the bearing barrel is placed. Its rotor design structure is special . It has the features of high efficiency and energy saving, wide application field, long service life and so on.   Working Principle: The material enters the sand making machine through the feeder. High-speed rotating dumping wheel in the centre feeder. Rapid acceleration in the dumping wheel. The speed can be tens of times the speed of gravity. The material is thrown out from the wheel at high speed.

The rebound material and the natural fall of the physical send impact. Simultaneous impact on the material liner. Be rebounded diagonally upward impact to the top of the vortex chamber. The direction of motion can be changed. Deflection downward movement. And with the impeller channel launched out of the physical impact to form a continuous physical curtain. A piece of physics in the vortex crushing chamber by multiple impacts. Crushing, crushing effect, the treated material is discharged through the discharge port.

Raw Materials

The sand making machine can handle more than 200 kinds of ores, such as: gold limestone, granite, basalt, river pebbles, cobbles, lapis lazuli and so on. So it is widely used in: highway, railway, building bridge, water conservancy, municipal and other project construction. We can customise the solution according to your needs.

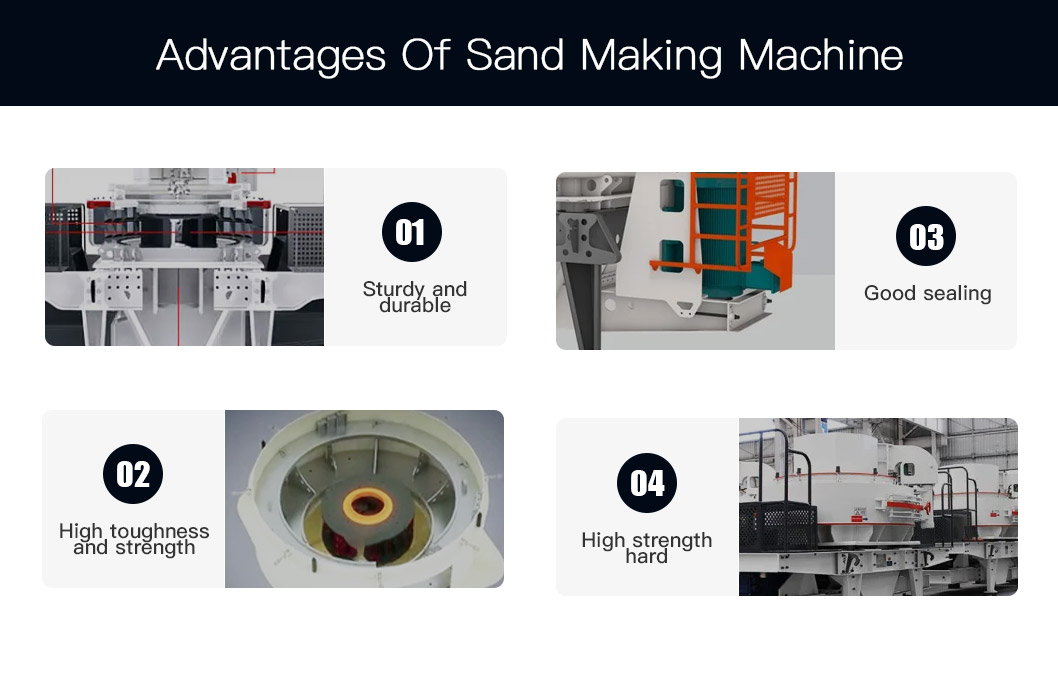

Advantageous

1. The fineness modulus is controllable, according to different physical demands, the product granularity can be controlled flexibly.

2. Impeller and other wearing parts are made of advanced special material casting, which is wear-resistant, corrosion-resistant and sturdy.

3. The hydraulic device is designed with open cover structure, which can replace the accessories quickly. It ensures easy follow-up maintenance.

4. Equipped with dust collector and silencer, it can eliminate the dust and noise generated in the sand making process.

5. high stacking density, uniform grading and low needle flake content.

6. equipped with excessive vibration display and alarm device, if a warning occurs, the equipment will automatically stop, so as to achieve the purpose of protecting the equipment.

Technological Process
