Mini Small Jaw Crusher

Mini Small Jaw Crusher

For customers with smaller feed volumes and infrequent usage, mini small jaw crushers are highly favoured.

  • Capacity : 400-2000kg/h
  • Raw Materials : Granite, iron ore, quartzite, limestone, coal, coke, gangue, construction waste, asphalt, iron ore, copper ore, basalt, diabase, etc.

Products Detail

The mini small jaw crusher is primarily suited for processing small quantities of ore, rock, and other easily crushed materials. It can perform micro-grinding, secondary crushing, and fine crushing. Its hardness range extends from hard adaptable materials to relatively softer claystone. It boasts a wide range of applications. This crusher is more suitable for laboratory testing, the construction industry, metallurgy, building materials, or small-scale mining.



Mini Small Jaw Crusher Components



Components

Moving jaw plate, fixed jaw plate, eccentric shaft, toggle plate, pulley, motor, frame, feed hopper, etc.

Working Principle

The motor drives the belt and pulley via the eccentric shaft. The moving jaw performs an up-and-down motion. When the moving jaw rises, the angle between the toggle plate and the moving jaw increases. This pushes the moving jaw plate and fixed jaw plate closer together. As the movable jaw descends, the angle between the toggle plate and the movable jaw decreases. Under the action of the tie rods and springs, the movable jaw plate disengages from the fixed jaw plate. With the motor's continuous rotation, the movable and fixed jaws of the jaw crusher perform periodic crushing and discharging of the material. This achieves batch production of crushed material. We provide jaw crusher solutions, offering customisable jaw crusher sizes to meet diverse client requirements.



Mini Small Jaw Crusher Working Principle







Raw Materials

Small jaw crushers are commonly employed for processing diverse materials including river pebbles, limestone, quartzite, diabase, construction waste, iron ore, gold ore, granite, and basalt. Application domains encompass aggregate quarries, coal mine commissioning, dry-mix mortar production, coal mining operations, and concrete mixing plants.



[caption id="attachment_2733" align="aligncenter" width="1058"]Mini Small Jaw crusher crushing stone Mini Small Jaw crusher crushing stone[/caption]

Advantageous



  1. Employing an innovative crusher production process. The open-frame fixed plate design facilitates subsequent maintenance and cleaning, preventing ore blockages.
  2. Adjustable crushing fineness accommodates diverse output particle size requirements.
  3. Constructed with high-manganese steel and wear-resistant alloy steel components. Capable of processing materials of varying hardness.
  4. Compact and portable design. Simple operation and maintenance with zero dust leakage.
  5. The mini small jaw crusher incorporates larger, more durable eccentric shaft bearings. Enhanced load-bearing capacity and effective sealing significantly extend bearing service life.
  6.

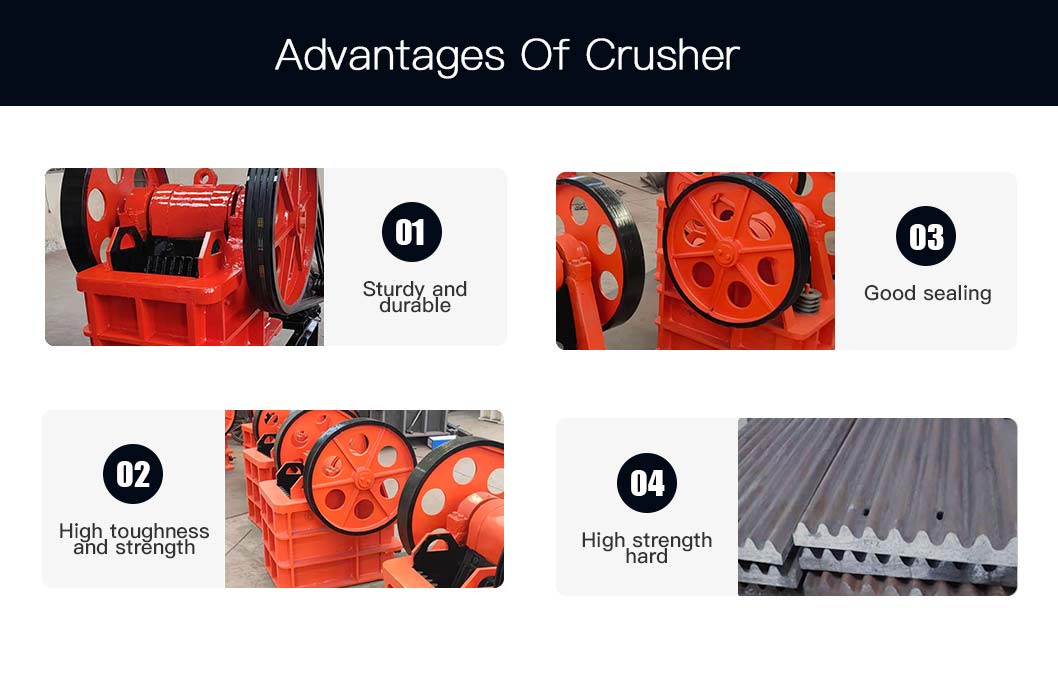

[caption id="attachment_2734" align="aligncenter" width="1058"]Mini Small Jaw Crusher Advantages Mini Small Jaw Crusher Advantages[/caption]



Technological Process



Model Feed opening size(mm) Feed size(mm) Outlet adjustment range(mm) Capacity (t/h) Power (kw) Size (mm)
PE150×250 150×250 130 10-45 1-4 5.5 896×745×935
PE200×300 200×300 180 15-50 2-6 7.5 910×750×990
PE200×350 200×350 180 18-70 3-10 7.5 1000×870×990
PE250×400 250×400 210 25-60 5-20 15 1215×1240×1210
PE400×600 400×600 350 40-90 15-60 30 1700×1750×1680
PE500×750 500×750 425 50-100 40-130 45 2150×1900×1950
PE600×900 600×900 500 60-125 90-180 55 2500×2010×2350
PE750×1060 750×1060 630 60-150 110-380 110 2630×2310×3110
PE900×1200 900×1200 750 95-165 220-450 132 3720×2850×3250
PE1000×1200 1000×1200 850 200-300 280-560 160 3820×2850×3250
PE1200×1500 1200×1500 1020 150-300 400-800 220 4590×3342×3553
PE1500×1800 1500×1800 1200 210-360 520-1100 280 5100×4700×4300
PEX150×750 150×750 120 10-40 5-16 15 1310×1118×1145
PEX250×750 250×750 210 15-50 15-30 22 1440×1751×1515
PEX350×750 350×750 300 15-50 18-40 30 1485×1680×1648
PEX250×1000 250×1000 210 15-60 15-52 30 1730×1950×1400
PEX250×1200 250×1200 210 15-60 20-60 37 1730×2150×1400
PEX300×1300 300×1300 250 25-60 30-105 55 2000×2320×1730
